Roof Tile Panels

Original price was: 15,73€.Current price is: 13,89€. without VAT

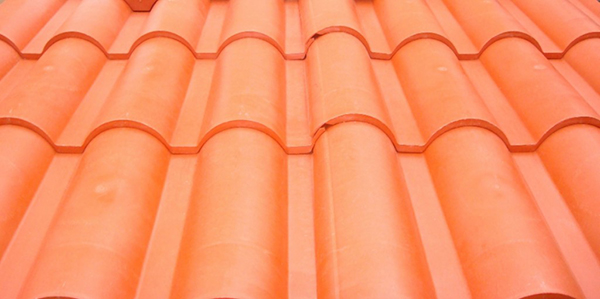

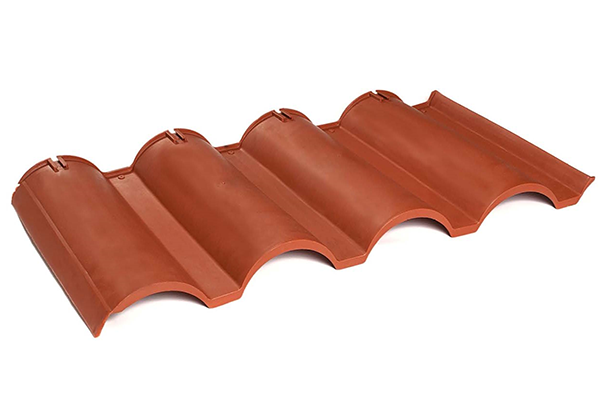

Plastic roof tile panel with 4 waves and patented anchor which joins panel to panel and hides the screws avoiding possible leaks and offering a neat and natural appearance.

2 panels = 1.05 m2 useful area

PRICE: €15.73
Limited-time discount: €13.89 per plastic tile panel

Usable dimensions (to calculate how many panels you need):
Length: 52 cm
Width: 101 cm

Gross dimensions (total size of the panel):
Length: 57 cm
Width: 107 cm

Conversion from square meters (m²) to number of plastic tile panels
(Formula to calculate this conversion: m² ÷ 0.525 = number of panels to purchase)
1 m²: 2 panels
2 m²: 4 panels
3 m²: 6 panels, and so on up to 10 m² (2 panels per m²)

From 11 m² onward, savings begin to show:

11 m²: 21 panels
12 m²: 23 panels
13 m²: 25 panels
and so on

Tile wave height: 8 cm
Thickness: 5 mm
Minimum slope: 10° or 17%
Weight per m²: 6.5 kg

Can be installed on new or old structures made of wood, iron, aluminum, PVC, etc.

Also suitable for installation over deteriorated American-style shingles. There is no need to remove the shingles, as long as there is solid wood in good condition underneath, the panels can be installed directly over them.

You can visit the INSTALLATION page through this link to view the tutorial, poster, technical sheet, and manual:
https://roofecosystem.com/en/installation/

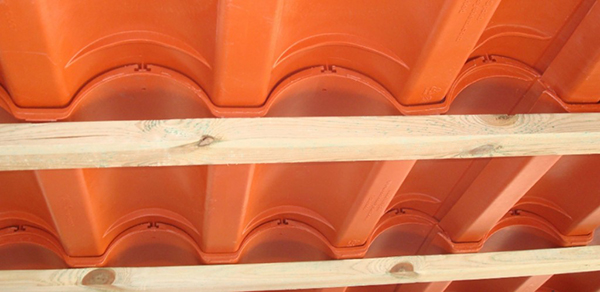

Below, you’ll find the recommended design for the structure.

Get in touch with us and we’ll consult you about the wide variety of colours we can offer, for special orders minimum 500 m2.

SKU: ES-1000-A Category:

Roofeco Plastic Roof Tiles Technical Data

Eco-composition: Recycled polymer with minerals and nanometric components which improve the original properties of the raw materials.

Thickness: 0.5 cm

Weight per m2: 6.5 kg approx.

Minimum roof slope: 10 degrees / 17%

Innovation: Anchor system which joins tile to tile and hides the screws, patented

Degradation: The nanometric components used in the formulation multiply the effect of the conventional additives by 4, thus slowing down the degradation of the material.

Heat and cold: Supports extreme temperatures from -40º C to +60ºC

Winds and hurricanes: Resists winds of up to 178 km/h (110 mph)

Tornadoes: Resists suction force of up to 650 kg/m2 (135 psf)

Acoustics: The sound of rain is hardly noticeable if there is no ceiling.

Reaction to fire: In the event of strong fire, the roof will burn, but it will not contribute to the spreading of the fire nor release toxic gases as would PVC.

Maintenance: not required

Trafficability: Total, does not break and resists hailstorm

Excess cuttings: They will be deposited in the recycling container for plastic materials. Not toxic.
